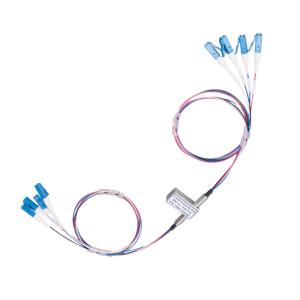

Dual 2x2 Bypass Optical Switch Wavelength 1260nm To 1620nm SM Fiber Network Switch

Brand Name : HJY

Model Number : HJY-FSW-D2X2B-SM-1

Certification : CE, ROHS, FCC ISO9001

Place of Origin : China

MOQ : 1pc

Price : Please send inquiry to sales@huajiayu.com

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100,000 pcs

Delivery Time : 3~7 working days

Packaging Details : Neutrial Packing or with OEM LOGO

Control Type : non-latching or latching

Switching Time : Less than 10ms

Maximum Optical Power : 500mw

Repeatability : ≤±0.02 dB

Durability : ≥ 10 Million

Working Wavelength : 1260nm 1650nm

Contact Now

Dual 2x2 Bypass Mechanical Optical Switch with Operating Wavelength of 1260-1620nm SM and 850nm MM for Versatile Usage

HJY‘s Dual 2x2 Bypass Mechanical Fiber Optical switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The Mechanical Fiber Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.

Features

Application

Unmatched Low Cost,

Dual 2x2 Bypass Mechanical Optical Switch
Low Optical Distortions
High Isolation
High Reliability
Epoxy-Free Optical Path

·Metropolitan Area Network

·R&D in Laboratory

·System Monitoring

·Configurable OADM

Specifications

Operating Wavelength	1260~1620nm(SM) 850nm(MM)	Insertion Loss	≤1.0dB
Wavelength Dependent Loss	≤0.25dB	Polarization Dependent Loss	≤0.05dB
Temperature Dependent Loss	≤0.20dB	Return Loss	SM≥50dB MM≥30dB
Cross Talk	SM≥55dB MM≥35dB	Switch Time	≤8ms
Repeatability	≤±0.02dB	Durability	≥107 times
Operating Voltage	3 or 5V	Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70℃	Storage Temperature	－40~＋85℃
Optical Power	≤500mW	Dimension	27.0L×12.0W×8.2H mm

Pin Configurations

Type	Optical Route	Electric Drive				State Sensor
D2×2B	Optical Route	Pin 1	Pin5	Pin6	Pin10	Pin 2-3	Pin3-4	Pin7-8	Pin 8-9
Latching	P1-P1’,P2-P2’ P3-P3’,P4-P4’	V＋	GND	--	--	Open	Close	Close	Open
Latching	P1-P3’,P2-P4’	--	--	GND	V＋	Close	Open	Open	Close
Non-latching	P1-P1’,P2-P2’ P3-P3’,P4-P4’	V＋	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3’,P2-P4’	--	--	--	--	Close	Open	Open	Close

Mechanical Dimensions (Unit:mm)

Dual 2x2 Bypass Optical Switch Wavelength 1260nm To 1620nm SM Fiber Network Switch

Optical Route

Ordering Information

HJY-FSW	-D1X2B-	-Wavelength-	-Switch Type-	-Voltage-	-Fiber Type-	-Package-	-Fiberlength-	-Connector-
		1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610=A 1310/1550＝9 850=8 Special＝0	Latching＝1 Non-latching＝2 MINI Latching＝3 MINI Non-latching＝4 Special＝0	3V=3 5V=5 Special＝0	SM28=1 50/125=5 62.5/125=6 Special＝0	Bare fiber=1 900um tube=3 Special＝0	0.25m=1 0.5m=2 1.0m=3 Special＝0	None=1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special＝0
